Stack

stack · Layout · All components

Flex container. The main layout primitive (rows, columns, sidebars, toolbars).

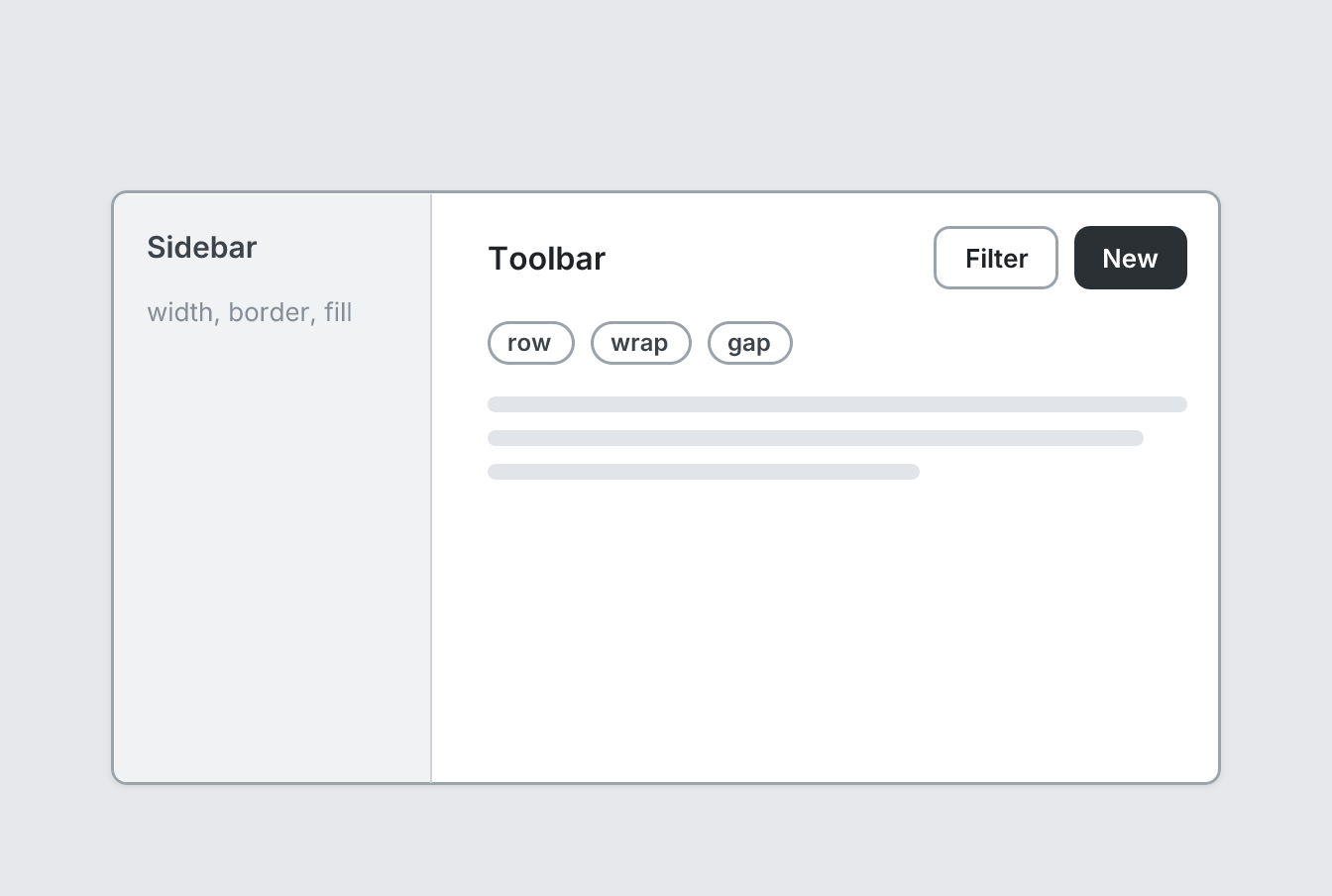

board
  screen custom width=560 height=300 padding=0
    stack row grow
      stack width=160 border=right fill padding=16 gap=12
        text "Sidebar" bold
        text "width, border, fill" sm muted
      stack grow padding=16 gap=16
        stack row justify=between align=center
          heading "Toolbar" level=3
          stack row gap=8
            button secondary sm "Filter"
            button primary sm "New"
        stack row wrap gap=8
          badge outline "row"
          badge outline "wrap"
          badge outline "gap"
        text lines=3

Writing it

• Bare words set direction: row, column.
• Bare words set align: stretch.
• Bare words set justify: between, around.
• Bare words set border: none, right, left, top, bottom, all.
• start, center, end are options of align and justify, so write which one you mean: align=start or justify=start.
• wrap turns wrap on; no-wrap turns it off.
• grow turns grow on; no-grow turns it off.
• fill turns fill on; no-fill turns it off.
• Anything else is written key=value.
• Holds other elements: indent them two spaces below it.

Props
