Board

board · Canvas · All components

Root canvas (artboard). Holds Screens side by side, plus optional Notes and Flow lines. Must be the root element.

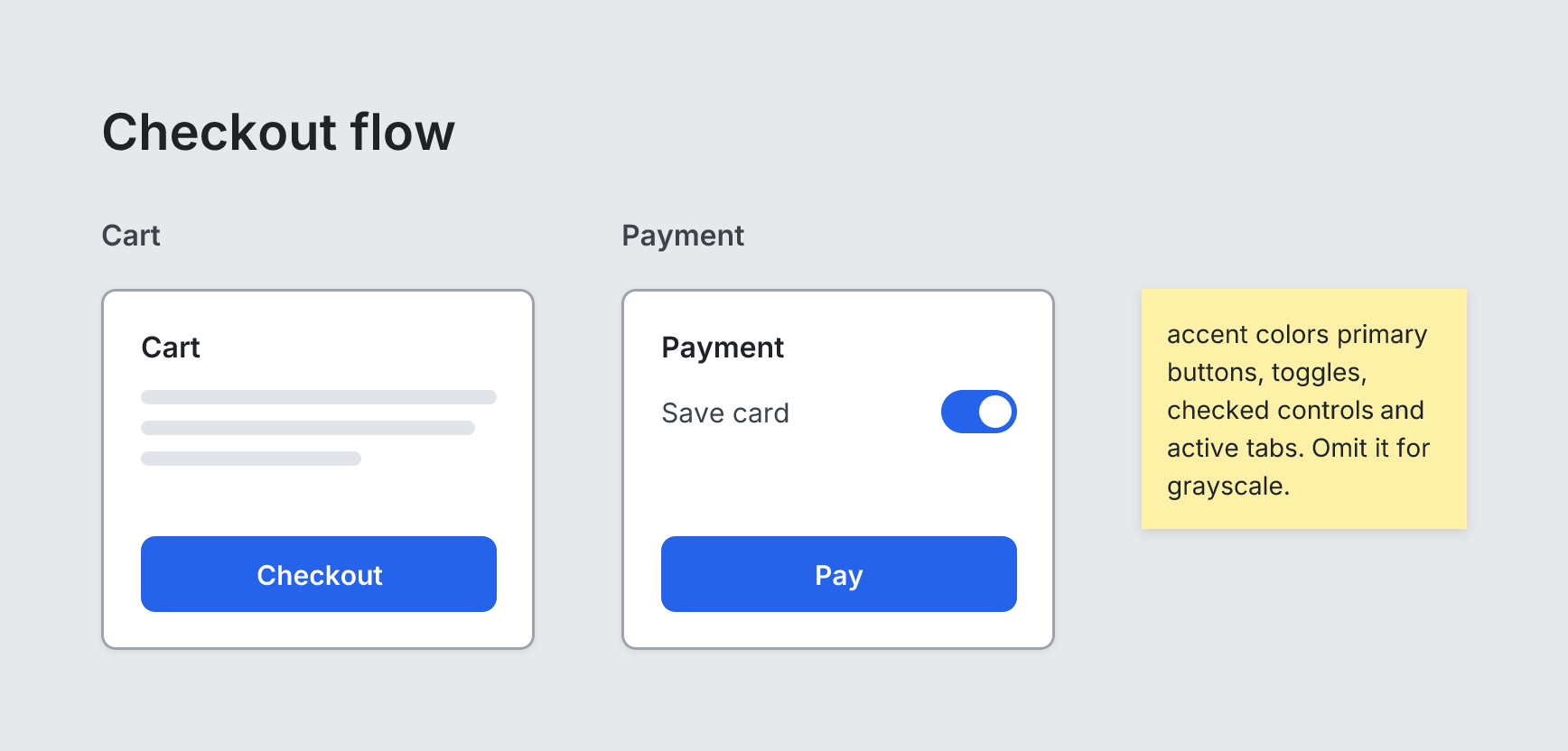

Board example

board row "Checkout flow" gap=48 accent=blue
  screen custom "Cart" width=240 height=200
    heading "Cart" level=3
    text lines=3
    spacer
    button primary "Checkout" fullWidth
  screen custom "Payment" width=240 height=200
    heading "Payment" level=3
    toggle "Save card" on
    spacer
    button primary "Pay" fullWidth
  note "accent colors primary buttons, toggles, checked controls and active tabs. Omit it for grayscale." width=180

Writing it

A quoted string sets title: board "…".
Bare words set layout: row, grid.
Anything else is written key=value.
Holds other elements: indent them two spaces below it.

Props

Prop	Values	Notes
`title` (main text)	string
`layout`	row, grid	row = all screens side by side; grid = wrap every `columns` screens
`columns`	number
`gap`	number
`padding`	number
`accent`	string	The one UI color: primary buttons, solid badges, checked controls, toggles, sliders, progress, selected days and pages, active tabs, ghost buttons. blue, indigo, violet, pink, red, orange, green, teal, or a hex color like #1a73e8. Omit for grayscale.
