Progress

progress · Controls · All components

Progress bar, ring (circle), or stepper (steps).

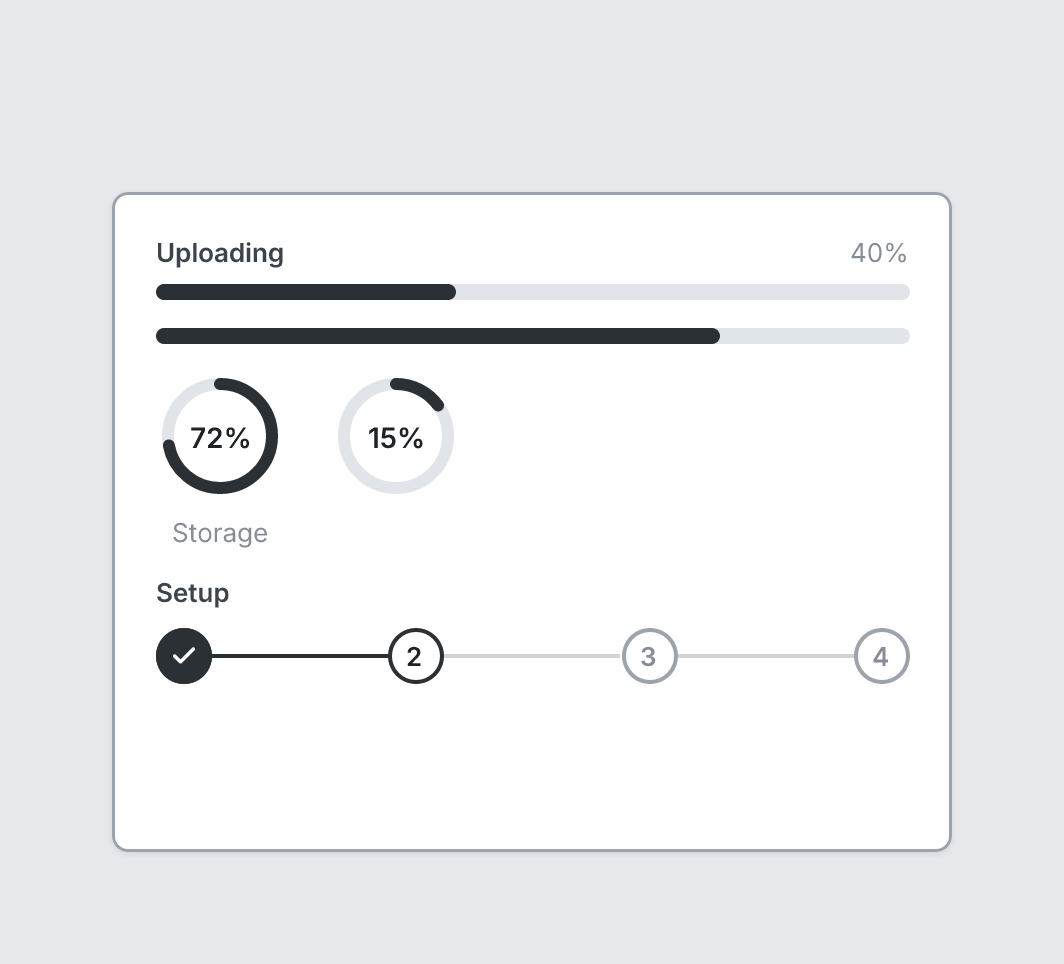

Progress example

board
  screen custom width=420 height=330
    progress "Uploading" value=40
    progress value=75
    stack row gap=24
      progress circle "Storage" value=72
      progress circle value=15
    progress "Setup" steps=4 step=2

Writing it

A quoted string sets label: progress "…".
Bare words set shape: bar, circle.
Anything else is written key=value.
Has no children.

Props

Prop	Values	Notes
`label` (main text)	string
`value`	number	Percent done
`shape`	bar, circle	Default bar; circle is a ring with the percent inside
`steps`	number	Draw a stepper with this many steps instead
`step`	number	The current step, with steps
