Drawer

drawer · Overlays · All components

Panel sliding in from an edge: side nav (left), filters/details (right), or bottom sheet. Must be a direct child of a Screen, listed last.

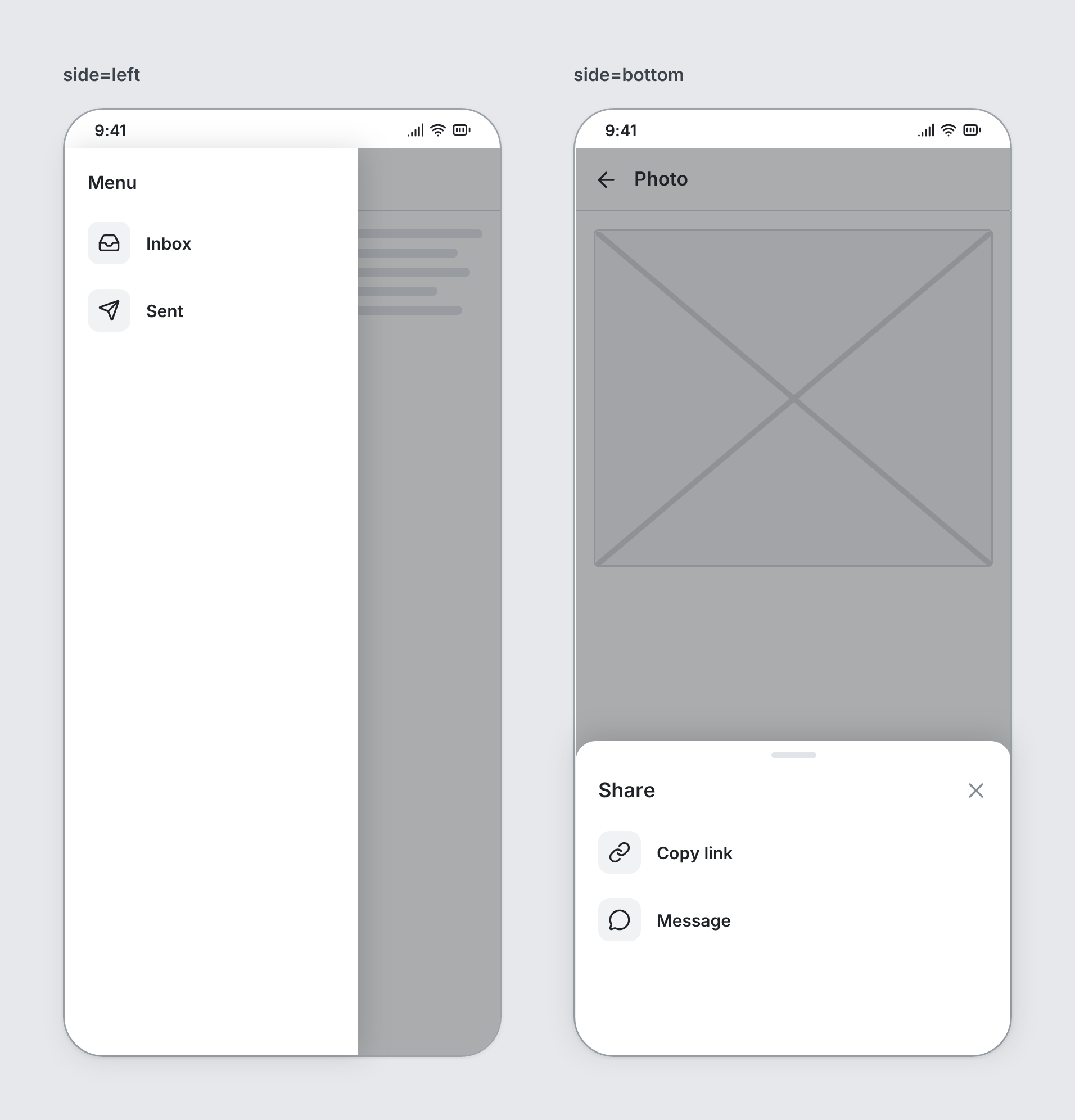

Drawer example

Open in playground

board
  screen phone "side=left"
    navbar "Inbox" leading=menu
    text lines=6
    drawer left size=260
      heading "Menu" level=3
      list dividers=false
        listitem "Inbox" leadingIcon=inbox
        listitem "Sent" leadingIcon=send
  screen phone "side=bottom"
    navbar "Photo" leading=back
    image height=300
    drawer bottom "Share" size=280
      list dividers=false
        listitem "Copy link" leadingIcon=link
        listitem "Message" leadingIcon=message-circle

Writing it

A quoted string sets title: drawer "…".
Bare words set side: left, right, bottom.
scrim turns scrim on; no-scrim turns it off.
handle turns handle on; no-handle turns it off.
Anything else is written key=value.
Holds other elements: indent them two spaces below it.

Props

Prop	Values	Notes
`side`	left, right, bottom
`title` (main text)	string
`size`	number	Width for left/right, height for bottom
`scrim`	boolean	Dim the screen behind. Default true.
`handle`	boolean	Grab handle on bottom sheets. Default true for bottom.
