Chart

chart · Content · All components

Chart placeholder: a generic line, bar, area, pie or donut shape, no data.

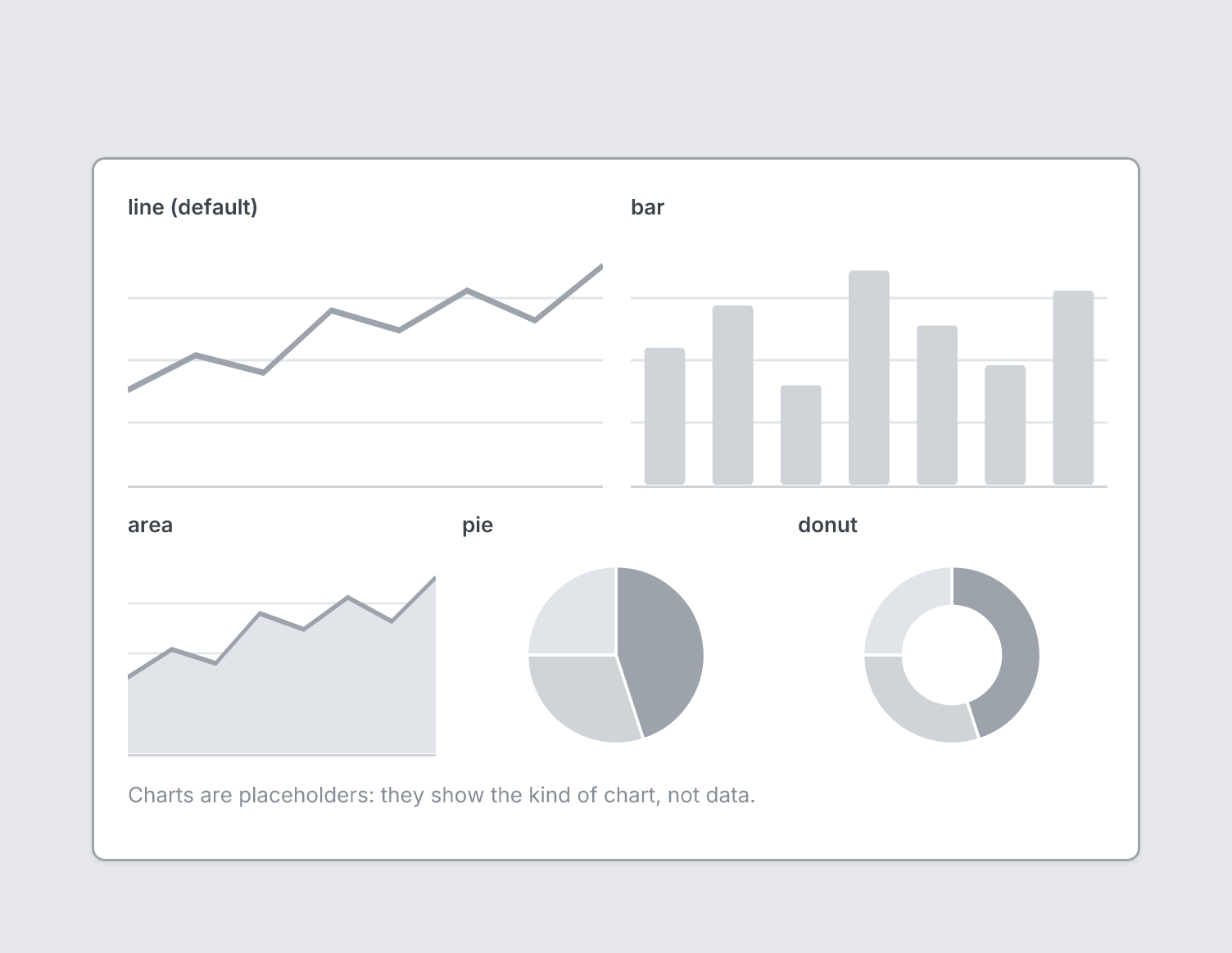

Chart example

board
  screen custom width=640 height=430
    stack row gap=16
      chart line "line (default)"
      chart bar "bar"
    stack row gap=16
      chart area "area" height=150
      chart pie "pie" height=150
      chart donut "donut" height=150
    text "Charts are placeholders: they show the kind of chart, not data." sm muted

Writing it

A quoted string sets title: chart "…".
Bare words set kind: line, bar, area, pie, donut.
Anything else is written key=value.
Has no children.

Props

Prop	Values	Notes
`kind`	line, bar, area, pie, donut	Default line
`title` (main text)	string
`height`	number	Default 180
`width`	number, string	Default fills the container width
