Screen

screen · Canvas · All components

One view of the product in a device frame. Children stack vertically.

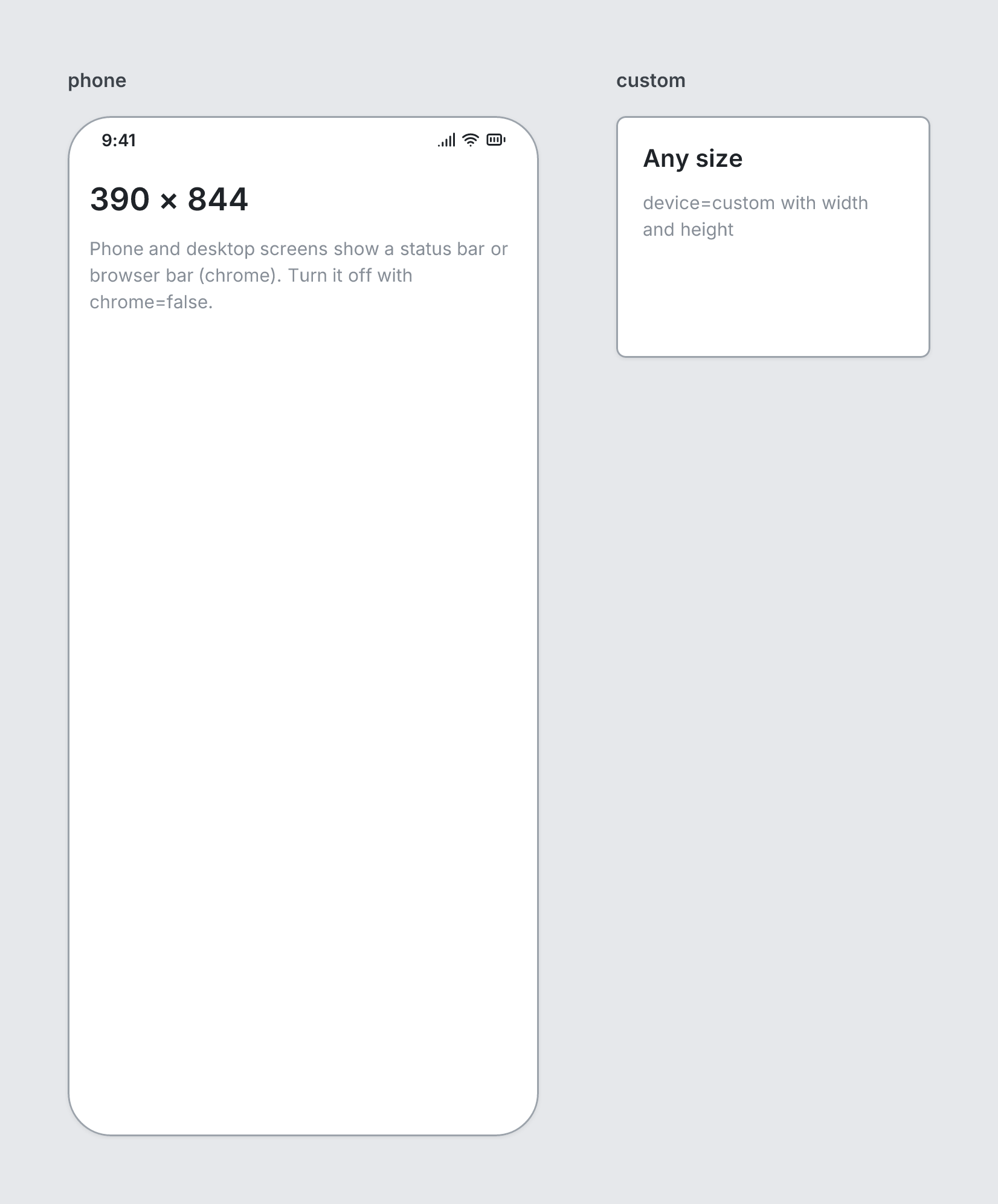

Screen example

board
  screen phone "phone"
    heading "390 × 844"
    text "Phone and desktop screens show a status bar or browser bar (chrome). Turn it off with chrome=false." muted
  screen custom "custom" width=260 height=200
    heading "Any size" level=2
    text "device=custom with width and height" muted

Writing it

A quoted string sets name: screen "…".
Bare words set device: phone, tablet, desktop, custom.
chrome turns chrome on; no-chrome turns it off.
Anything else is written key=value.
Holds other elements: indent them two spaces below it.

Props

Prop	Values	Notes
`name` (main text)	string	Label shown above the screen
`device`	phone, tablet, desktop, custom
`width`	number	Overrides the device width
`height`	number	Overrides the device height, e.g. height=1400 for a long scrolling page
`chrome`	boolean	Phone status bar / desktop browser bar. Default true for phone and desktop.
`padding`	number
`gap`	number
